| Rated Capacities | 200lb, 300lb, 500lb |
| Full Scale Output | 2.0mV/V ± 20% |
| Zero Balance | < ± 0.02mV/V |
| Non-linearity | < ± 0.06% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.06% |
| Creep in 30 minutes | < ± 0.25% |
| Input Resistance | 1050Ω ±15Ω |
| Output Resistance | 1000Ω ± 3Ω |
| Recommended Excitation | 10V |
| Insulation Resistance | >5 [50V DC] GΩ |
| Nominal Temperature Range | -10°C to 50°C/-14°F to 122°F |
| Seal Type | Environmentally Sealed |
| IP Rating | IP30 |

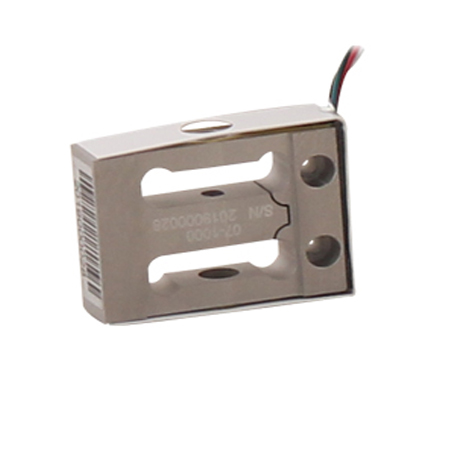

101ASLS Side Mount Load Cell
Description:
101ASLS "belt-buckle" side mount load cell is a precision force measurement solution precisely machined to provide integral overload protection. The 101ASLS is interchangeable with Futek LSM300.
Anyload is equipping growth in the force measurement industry with this simple, portable, and reliable load cell, click here to see more force measurement products.
Features:
- Material: Stainless Steel
- Rated Capacities: 200lb, 300lb, 500lb
- Full Scale Output: 2.0mV/V ± 20%
- IP Rating: IP30
| Manufacturer | Model |
| Futek | LSM300 |
