| Rated Capacities | 100N, 250N, 500N, 750N |
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.020% |
| Hysteresis Error | < ± 0.010% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

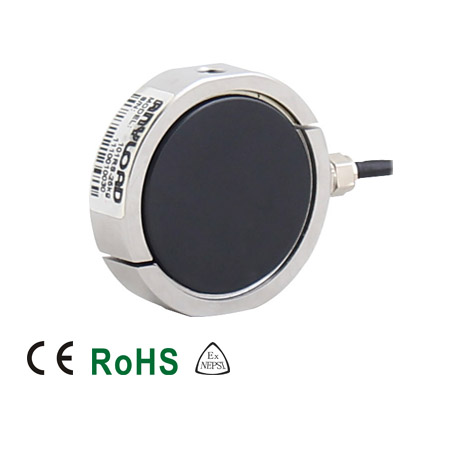

101RS Compression and Tension Load Cell
Description:
The 101RS is a sleek S-beam type load cell built to be a tough and reliable tension and/or compression measurement solution for compact or lightweight applications that include testing instruments, hand-held portable devices, and more. It is designed with intrinsic overload stops to both tension and compression. The 17-4 PH stainless steel construction is IP66 water-resistant, able to perform in challenging environments. This is a flexible solution to meet a variety of weighing and force measurement needs.
Features:
- Material: Stainless steel
- Rated Capacities: 100N, 250N, 500N, 750N
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE, RoHS and Ex Nepsi certified
Note: You may need a software that can open/view STEP files.
