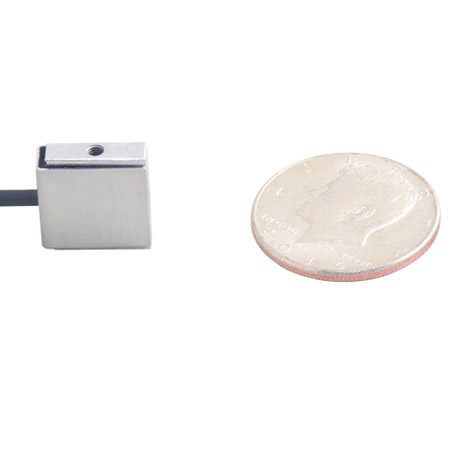

101RSLS S-Beam Load Cell
- Material: Stainless Steel
- Rated Capacities: 250g, 1lb, 2lb, 5lb, 10lb, 25lb, 50lb, 100lb
- Full Scale Output: 1.0mV/V ± 20% (250g); 2.0mV/V ± 20% (1-100lb)
- Safe Overload: 1000% of full scale (1-25lb); 200% of full scale (50-100lb) for tension only
- IP Rating: IP40
| Rated Capacities |
250g, 1lb, 2lb, 3lb, 10lb, 25lb, 50lb, 100lb |
| Full Scale Output |
1.0mV/V ± 20% (250g); 2.0mV/V ± 20% (1-100lb) |
| Zero Balance |
< ± 0.02mV/V |
| Non-linearity |
< ± 0.1% |
| Repeatability |
< ± 0.05% |
| Hysteresis Error |
< ± 0.1% |
| Creep in 30 minutes |
< ± 0.1% |
| Input Resistance |
350Ω ±10Ω |
| Output Resistance |
350Ω ± 5Ω |
| Recommended Excitation |
5V (10V Max) |
| Insulation Resistance |
>5 [50V DC] GΩ |
| Nominal Temperature Range |
-10°C to 50°C/-14°F to 122°F |
| Safe Overload |
1000% of full scale (1-25lb); 200% of full scale (50-100lb) for tension only |
| Seal Type |
Environmentally Sealed |
| IP Rating |
IP40 |
