| Rated Capacities | 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |

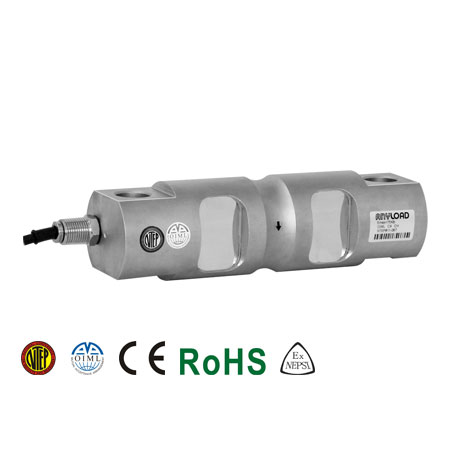

102DH Double Ended Beam Load Cell
Description:
The 102DH is an OIML and NTEP-certified double-ended shear beam load cell with excellent accuracy, reliability, and cost-effectiveness. It is interchangeable with Rice Lake RL70000, Vishay Revere 5103, and Sensortronics 60058. The product is ideal for heavy-duty applications including silo and tank weighing, weighbridges, onboard weighing, and platform weighing. A compression weigh module is available from Anyload that, shields the load cell, minimizes off-center loading, and compensates for thermal expansion all to provide the ideal weighing environment.
Features:
- Material: Alloy steel
- Rated Capacities: 5Klb, 10Klb, 20Klb, 30Klb, 40Klb, 50Klb, 60Klb, 75Klb, 100Klb, 150Klb, 200Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 20Klb-120Klb
- OIML MAA C4, Y=15 000 certified from 10t-50t
- CE, RoHS and Ex certified
| Manufacturer | Model |
| Coti Global | CG-5103 |
| Rice Lake | RL70000 |
| Rice Lake | RL72020 |
| Mettler Toledo | SLD430 |
| Vishay Revere Transducers | 5103 |
| Vishay Sensortronics | 60058 |
