| Rated Capacity | 60Klb |
| Full Scale Output | 3mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |

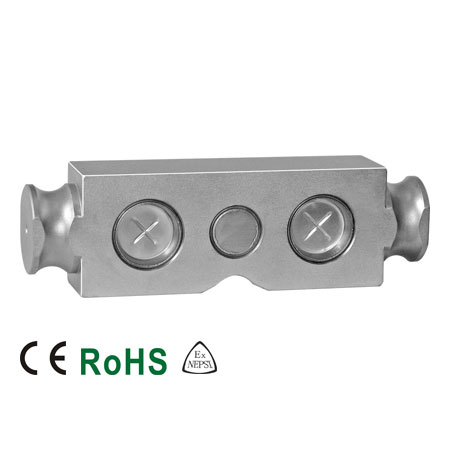

102RHGT Double Ended Beam Load Cell
Description:
The 102RHGT is a heavy-duty double-ended beam load cell that is weld sealed IP68-class water-resistant. It is well-suited to higher capacity applications, particularly in truck scales where reliable performance under harsh environments. Interchangeable with BIM SDB60Klb.
Features:
- Material: Alloy steel
- Rated Capacity: 60Klb
- Full Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE, RoHS and Ex certified
| Manufacturer | Model |
| BIM | SDB60Klb |
