| Rated Capacity | 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 450Ω ± 4.5Ω |
| Output Resistance | 480Ω ± 4.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |

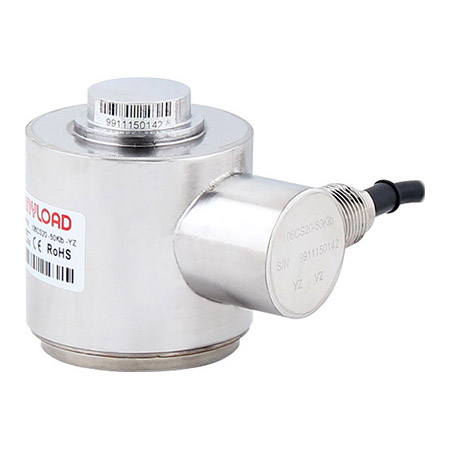

106CS20 Canister Load Cell
Description:
High capacity compression canister load cell with stainless steel IP68 waterproof construction capable of performing even under extreme conditions. Common applications include railroad and truck scales. The 106CS20 is interchangeable with Rice Lake RLCSP1 and Revere 692B and more (see: INTERCHANBEAGLE tab).
Features:
- Material: Stainless steel
- Rated Capacities: 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
Download data sheet
| Manufacturer | Model |
| Coti Global | CG-26S5 |
| Rice Lake | RLCSP1 |
| Vishay Revere Transducers | CSP |
| Vishay Revere Transducers | 692B |
