| Rated Capacity | 20t, 30t, 40t |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.023% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 700Ω ± 20Ω |
| Output Resistance | 705Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |

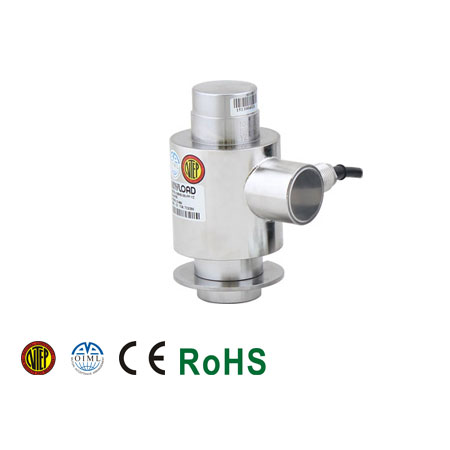

106HS Canister Load Cell
- Material: Stainless steel
- Rated Capacities: 20t, 30t, 40t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
- OIML MAA C3, Y=16 000 certified from 10t-50t
- CE and RoHS certified
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-26S4 |
| HBM | C16* |
| Vishay Revere Transducers | ASC** |
* HBM C16 is interchangeable with ANYLOAD 106HS with or without the mounting hardware
** ANYLOAD 106HS with mounts is interchangeable with Vishay Revere Transducers ASC with mounts. Without mounts, the load cells are not interchangeable.
