| Rated Capacity | 50Klb, 100Klb |
| Full Scale Output | 3mV/V ± 0.1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 350Ω ± 3.5Ω |
| Output Resistance | 350Ω ± 3.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0014% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |

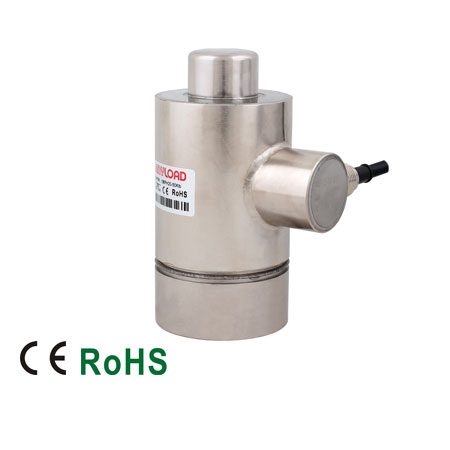

106PS Canister Load Cell
Description:
The 106PS is a reliable high-accuracy canister load cell used for a variety of medium- and high-capacity compression weighing applications. The stainless steel IP68 welded-sealed construction ensures excellent performance even under extreme conditions. Common applications for the 106PS include silo, tank, and hopper weighing, railroad scales, and weighbridges.
Features:
- Material: Stainless steel
- Rated Capacities: 50Klb, 100Klb
- Full Scale Output: 3mV/V ± 0.1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
| Manufacturer | Model |
| Coti Global | CG-93 |
| Vishay Revere Transducers | 93 |
