| Rated Capacity | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg |
| Reference Max. Platform Size | 350mm x 350mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ±0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

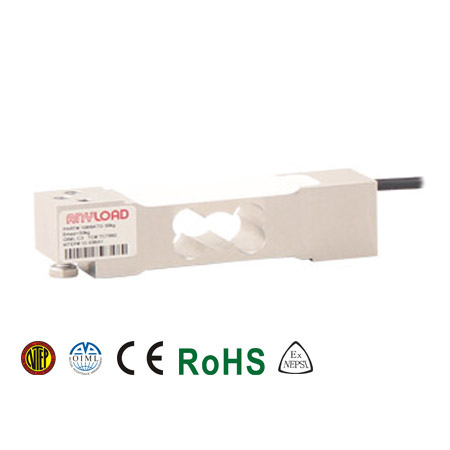

108BATD Single Point Load Cell
Description:
The 108BATD is an NTEP- & OIML-certified IP66 waterproof aluminum single point. The design provides excellent off-center compensation and is used as an easy-to-install weighing solution in a variety of industries. Common applications include bench scales, counting scales, and process weighing.
Featured:
- Material: Aluminum
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML MAA C4, Y=15 000 certified for 5kg-30kg
- OIML MAA C5, Y=12 300 certified for 50kg-100kg
- CE, RoHS, NTEP, and Ex certified
| Manufacturer | Model |
| Vishay Tedea-Huntleigh | 1030 |
