| Rated Capacities | 500kg, 800kg, 1t, 1.5t, 2t |
| Reference Max. Platform Size | 1200mm X 1200mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

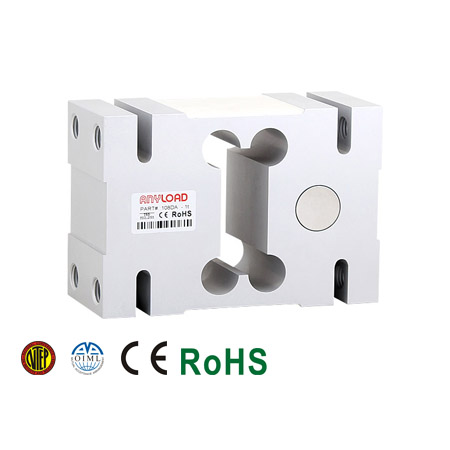

108DA Single Point Load Cell
Description:
The 108DA is a heavy-duty single point delivering reliable performance for medium and high-capacity applications. Each load cell is individually adjusted to protect against corner errors. This model is a simple and easy-to-install solution and common applications include platform scales, floor scales, bench scales, check weighing, process weighing, hanging scales, and more. The 108DA is interchangeable with Vishay Tedea-Huntleigh 1320, Celtron HOC, and Flintec PC81.
Features:
- Material: Aluminum
- Rated Capacities: 500kg, 800kg, 1t, 1.5t, 2t
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Vishay Celtron | HOC |
| Vishay Tedea-Huntleigh | 1320 |
| Flintec | PC81 |
