| Rated Capacity |
3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg |
| Full Scale Output |
0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω |
± 0.05% |
| Zero Balance |
± 0.02mV/V |
| Non-linearity |
< ± 0.020% |
| Repeatability |
< ± 0.017% |
| Hysteresis Error |
< ± 0.015% |
| Creep in 30 minutes |
< ± 0.015% |
| Input Resistance |
1190Ω ± 10Ω |
| Output Resistance |
1000Ω ± 10Ω |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
> 2GΩ (50V DC) |
| Nominal Temperature Range |
-10°C to 40°C/14°F to 104°F |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Environmentally sealed |
| IP Rating |
IP65 |

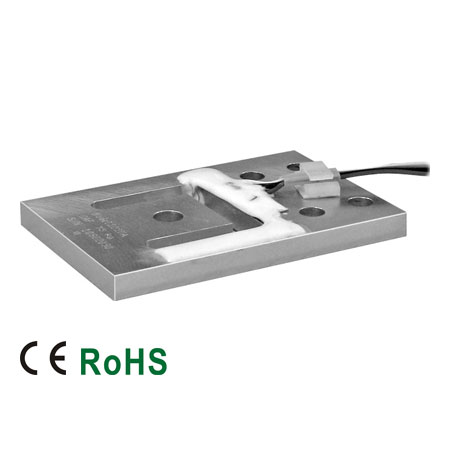

202UA,(3-15)kg
202UA,(37.5-75)kg
202UA,(150-300)kg
Note: You may need a software that can open/view STEP files.
| Manufacturer |
Model |
| Flintec |
PB |
| Rice Lake |
RL BLP |
