| Rated Capacity | 250kg |
| Full Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.01% |
| Repeatability | < ± 0.01% |
| Hysteresis Error | < ± 0.01% |
| Creep in 30 minutes | < ± 0.01% |
| Input Resistance | 1204Ω ± 5Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP65 |

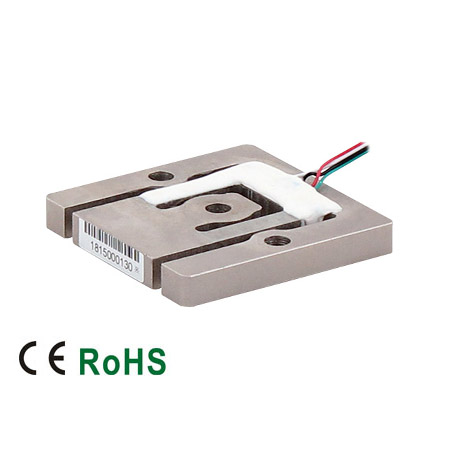

202WH Planar Load Cell
- Material: Alloy Steel
- Rated Capacity: 250kg
- Full Scale Output: 0.9mV/V ± 0.1%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150% of full scale of
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS certified
Note: You may need a software that can open/view STEP files.
