| Rated Capacity |
100kg, 200kg, 250kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t |
| Full Scale Output |
2mV/V ± 1% |
| Zero Balance |
± 0.04mV/V |
| Non-linearity |
Cap. 2t: <±0.2%; Cap.≥5t: <±0.05% |
| Repeatability |
Cap. 2t: <±0.03%; Cap.≥5t: <±0.03% |
| Hysteresis Error |
Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
| Creep in 30 minutes |
Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
| Input Resistance |
Cap. 2t: 400Ω±20; Cap.≥5t: 770Ω±30 |
| Output Resistance |
Cap. 2t: 350Ω±3; Cap.≥5t: 700Ω±5 |
| Recommended Excitation |
10V (15V Maximum) |
| Insulation Resistance |
>2［50V DC］ Ω |
| Compensated Temperature Range |
-10oC to 50oC / 14oF to 122oF |
| Safe Overload |
150% of full scale |
| Breaking Overload |
300% of full scale |
| Seal Type |
Welded Seal |
| IP Rating |
IP68 |

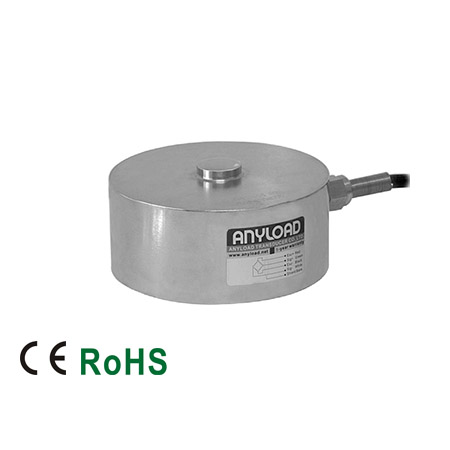

266AS, (100-5000)kg
266AS, (10-20)t
Note: You may need a software that can open/view STEP files.
