363YH Compression Load Cell, Alloy Steel, Welded Seal, IP67

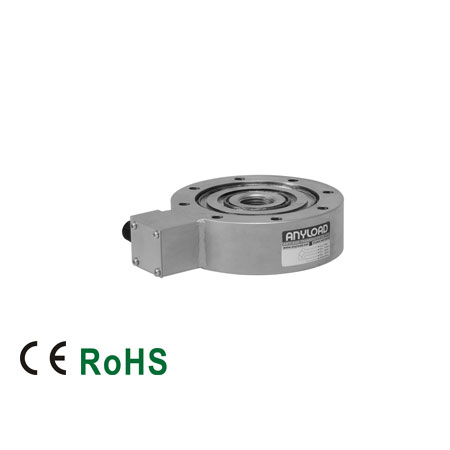

363YH Compression and Tension Load Cell

Description:

The 363YH tension and/or compression load cell is a universal weighing and force measurement solution for a wide variety of high-capacity applications. The IP67 alloy steel construction of the low-profile disk/canister load cell with a high safety factor is designed to perform under challenging conditions.

Features:

  • Material: Alloy steel
  • Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
Clear
Product Enquiry
SKU: N/A Categories: , ,
SPECIFICATIONS 363YH-(1-5)t 363YH-(10-300)t
Rated Capacities 1t, 2t, 3t, 5t 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.050% < ± 0.30%
Repeatability < ± 0.030% < ± 0.20%
Hysteresis Error < ± 0.050% < ± 0.30%
Creep in 30 minutes < ± 0.050% < ± 0.10%
Input Resistance 770Ω ± 30Ω
Output Resistance 700Ω ± 5Ω
Rated Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0023% of Cn/k
Temperature Effect on Zero Balance < ± 0.0120% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67

pdf- Download data sheet

pdf- 363YH, (5-30)t

pdf- 363YH, (50-100)t

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
