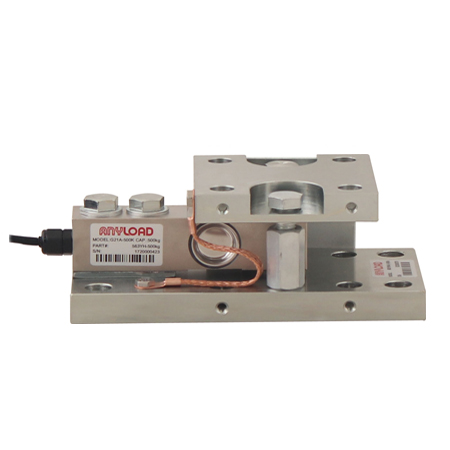

563YHM4-02 Compression Weigh Module
- Assembles: 563YH Alloy Steel Shear Beam Load Cell
- Capacities: 100lb-20Klb/100kg-10t
- Integral "Jacking" for easy load cell removal/installation
- Rocker pin design-allows for 360° thermal expansion
- Both uplift and overload protection with lateral stops
- Versatile mounting options for conventional tank/vessel leg
- Able to use existing 4-square tank leg mount holes in floor
- Free to rotate for fixed position 360° w/same 4-mount holes
- Able to flip entire mount 180° for further mount options
- Side holes each side for shipping & installation brackets
- Flexible stainless steel braided grounding strap
- Load cell not included
