| Rated Capacities | 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg |
| Reference Max. Platform Size | 450mm x 500mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed, Potted |
| IP Rating | IP67 |

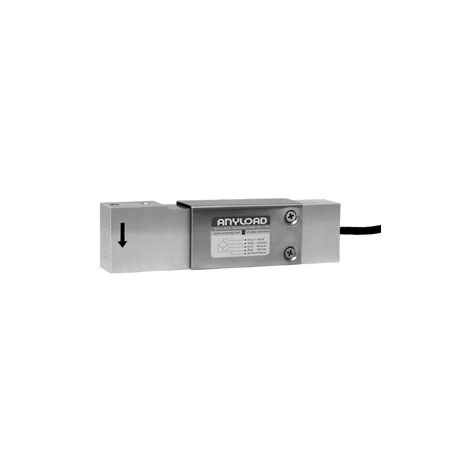

651TAUN Single Point Load Cell
Description:
Robust, low capacity compression weighing single point load cell that is simple to install and built to last, with 150% safe overload and IP67 waterproofing. Common applications include platform scales, process weighing, mail and packaging, and more.
Features:
- Material: Aluminum
- Thread: Imperial
- Rated Capacities: 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 200kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-40 |
| Rice Lake | RL1040 |
| Vishay Celtron | LOC |
| Vishay Tedea-Huntleigh | 1040 (mounting hole: 1/4”-28UNF) |
| Vishay Tedea-Huntleigh | 1041 (mounting hole: 1/4”-28UNF) |
