| Display Digits | 5” (125mm) height, 6 digits, 7 segments |
| Digit Segments | 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 annunciators for GR, NT, lb and kg (some versions in kg and t) |
| Decimal Point | 2 decimal point places with choice of dot or coma |
| Membrane Keypad | 4 keys dome membrane keypad |
| Brightness Control | 550nm ambient light sensor to adjust brightness in day and night |
| Communication Ports | 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse incoming string |
| Echo Port | 2 independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 independent transmit port for none legal for trade printing applications |
| Digital Output | 1 form C relay output rated at 2A / 60VDC |
| Digital inputs | 2 independent dry contact switch inputs |
| Main Enclosure | Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications |
| Power Supply | Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated |
| Power Consumption | 120VAC @ 0.5A / 12VDC @ 2.5A ( 60W AC / 30W DC ) typical |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 22.2” W X 9.8” H X 3.5” D (565mm X 250mm X 89mm) or 25.9” W X 13.7” H X 5.9” D (658mm X 348mm X 149mm) - mounting brackets & canopy included |
| Total Weight | 7.5 kg (17 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately |
| Industry Approvals | UL/CSA approved class II power supply |
| Certification of Conformity | CE Marking, EMC and LVD Directives |

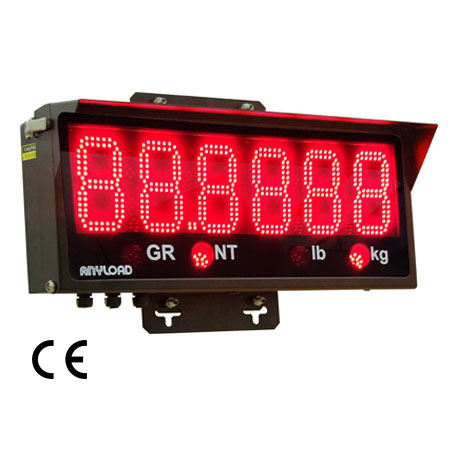

808AH Remote Display 5” Standard Model
The ANYLOAD 808AH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install. They are incorporated with Auto-Learn communication and protocol feature for compatibility with wide range of indicators and weighing instruments.
- Six 5” (125mm) tall digits LED industrial remote display
- High intensity, wide viewing angle discrete LEDs
- Standard seven segments
- Automatic learn mode to set communication baud rates
- Automatic learn mode to detect incoming strings format
- Ambient light sensor for day and night brightness control
- Adjustable brightness settings for day and night
- Software configuration for custom string formats
- Menu driven setup function using a membrane keypad
- Switch inputs and a relay output module to control traffic light
- Customized software utility programs
- Customized addressable configuration
- Up to two decimal places with choice of dot or comma
- Reverse digits mode for visibility in mirrors
- Standard wall mount and pole mount kits
- Standard sun visor and rain shade
- Indication of GROSS (GR) or NET (NT) status by annunciators
- Indication of KG (kg) or LB (lb) units by annunciators
- Independent ESD protected RS232, RS422/RS485 and 20mA
- Echo out port for RS-232 and RS-422/RS-485
- Metal enclosure with hinged front cover for easy service
- Grey front safety glass
- Weather proof mild steel powder coated enclosure
- Internal folding electronic plate for easy wiring
- CE Marked, EMC and LVD Directives Conformity
- UL/CSA approved encapsulated multi sense voltage power supply
- Breather ventilation to avoid condensation inside enclosure
- Wireless option with WL900 Wireless Transceiver
