| Display Digits | 5” (125mm) height, 6 digits, 7 segments, with 6" (150mm) RED/GREEN balls |
| Digit Segments | 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED |
| Micro Controller | 50MHZ ARM Cortex M® processor |
| Status Indication | 4 annunciators for GR, NT, lb and kg (some versions in kg and t) |
| Decimal Point | 2 decimal point places with choice of dot or coma |
| Membrane Keypad | 4 keys dome membrane keypad |
| Brightness Control | 550nm ambient light sensor to adjust brightness in day and night |
| Communication Ports | 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop |
| Communication Baud | Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate |
| String Protocol | Auto learn to detect string protocol and parse incoming string |
| Echo Port | 2 independent serial ports for RS232 and RS422/RS485 |
| Printer Port | 1 independent transmit port for none legal for trade printing applications |
| Digital Output | 1 form C relay output rated at 2A / 60VDC |
| Digital inputs | 2 independent dry contact switch inputs |
| Main Enclosure | Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications |
| Power Supply | Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated |
| Power Consumption | 120VAC @ 0.7A / 12VDC @ 3.0A ( 75W AC / 35W DC ) typical |
| Operating Temperature | -40°F to 120°F (-40°C to 50°C) |
| Operating Humidity | 20%RH to 90%RH |
| Enclosure Ventilation | GORE ® breather vent to avoid condensation |
| Physical Dimensions | 32.5” W X 9.8” H X 3.5” D (825mm X 250mm X 89mm) or 36.1” W X 13.7” H X 5.9” D (918mm X 348mm X 149mm) - mounting brackets & canopy included |
| Total Weight | 12.5 kg (27 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately |
| Industry Approvals | UL/CSA approved class II power supply |
| Certification of Conformity | CE Marking, EMC and LVD Directives |

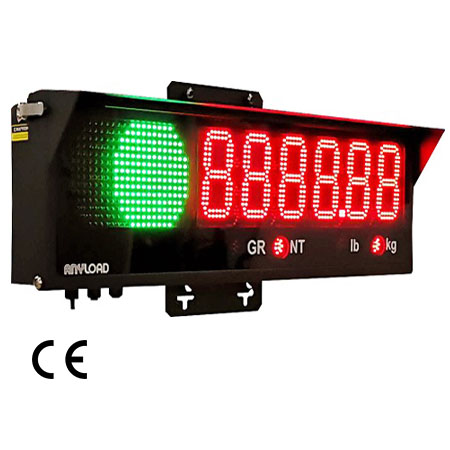

808BH Remote Display 5” with Built-in Traffic Light
The ANYLOAD 808BH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install:
Great Visibility:
- Built-in Red & Green Light
- Double-row discrete LED
- 6 digits, 5” height, 7 segment
- Wide viewing 120° angle
- Auto brightness adjustment
- Mirror display
RED / GREEN Lane Control:
- Using two manual input switches in solid or blinking modes
- Using several pre-installed software utility programs
- Using serial ASCII commands sent by programmable indicators
- Using special custom ordered software protocols
Smart Auto-Learn Technology:
- Automatically detect indicator string protocols
- Automatically set communication baud rates
Communication:
- Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
- Output: Echo out and addressable multi display configuration
Service Friendly:
- Modular design
- External membrane keypad
- Hinged front cover
- Pivoting internal electronics plates
- Wireless option with WL900 Wireless Transceiver
Enclosure:
- Weather proof design
- Visor to protect from sun or rain shade
- Wall & Pole mount kit
- Breather vent
