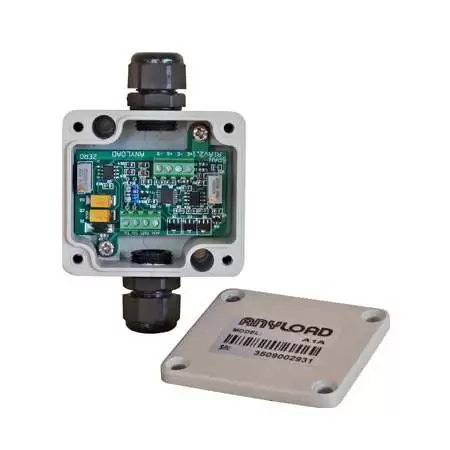

ANYLOAD A1A series strain gage amplifiers provide load cell and transducer signal conditioning. The A1A series strain gage amplifiers are DC-powered amplifiers that can drive 1 load cell connected directly. They can also drive several load cells up to 4 x 350Ω load cells or 8 X 700Ω load cells through a junction box. Housed in an aluminum casting enclosure, the A1A amplifiers have 2 through holes for easy installation and a wide output signal of 0V-10V or 4mA-20mA. The A1A-22B amplifier is equipped with compatibility in most models of I/O Link of Balluff.
| Specifications | A1A-22B |
| Load Cell Type | All strain gage types |
| Capacity | 1x350Ω directly connected or 4x350Ω or 8x700Ω through a junction box |
| Compatibility | Compatible with IO-LINK Balluff's |
| Power Supply | 24V DC ± 10% |
| Input Range | 0mV- 30mV |
| Maximum Power Voltage (DC) | 30V, 2.5A |
| Output Signal (Voltage) | 0V-10V |
| Output Signal (Current) | 4mA-20mA |
| Excitation voltage to load cell | 12 VDC |
| Enclosure Material | Aluminum casting |
| Operating Temperature Range | -10 to 50°C or 14 to 122°F |
| IP Rating | IP66 |
