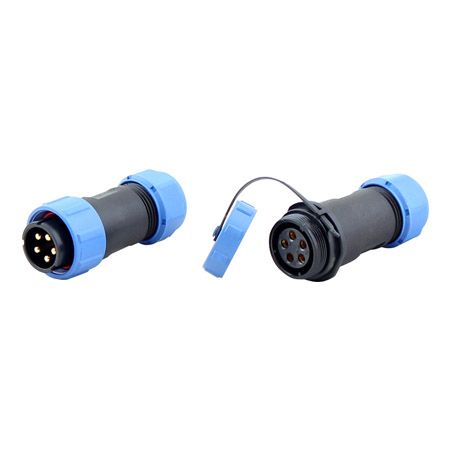

CCP Cable Connector
- Contacts: 5, 7
- IP Rating: IP68
- Water resistant design
- Connector with threaded coupling
- Inline cable connection
- CCP5-S has a smaller outer cable diameter than CCP5-L
| Part Number |
CCP5-S |
CCP5-S1 |
CCP5-L |
CCP5-L1 |
CCP7-L |
| Contact Diameter |
φ3mm×5 |
φ2mm×7 |
| Contact Resistance |
1MΩ |
2.5MΩ |
| Wire Size mm / AWG |
≤4.17/11 |
≤2/14 |
| Termination |
Screw |
Solder |
Screw |
Solder |
| Cable Outer Diameter |
φ4.5-7mm |
φ7-12mm |
| Shell Material |
PC, Nylon66, fire resistance: V-0 |
| Insert Material |
PPS, max temperature 260oC |
| Contact Material |
Brass with gold plating |
| Test Voltage/min (AC) |
1500V |
| Working Temperature |
-40C to 85C / -40F to 185F |
| Part No. |
Contacts |
Termination |
Shipping Weight (kg) Approx. |
| CCP5-S |
5 |
screw |
0.06 |
| CCP5-S1 |
5 |
solder |
0.06 |
| CCP5-L |
5 |
screw |
0.06 |
| CCP5-L1 |
5 |
solder |
0.06 |
| CCP7-L |
7 |
solder |
0.06 |
