Name: J04EA-16 and J04SA-16 J-BOXER Junction Box
SKU: 13329
Price: 1 CAD
Availability: InStock

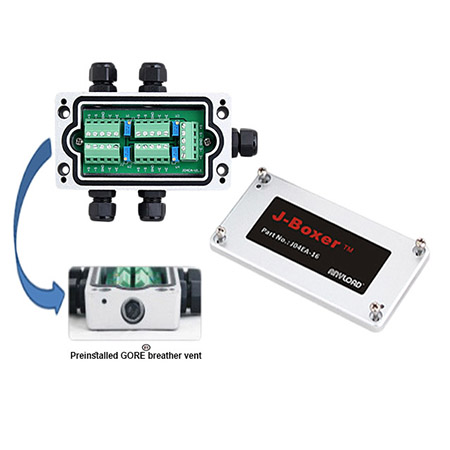

J04EA-16 and J04SA-16 J-BOXER Junction Box

ANYLOAD J04EA-16 and J04SA-16 junction and summing boxes accept inputs from multiple load cells and sum up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J04EA-16 and J04SA-16 are housed in an aluminum enclosure and are designed to accommodate two to four parallel load cell connections.

Compact size with strong aluminum casting
Number of cells: 2-4 single cells
Trimming Options: Individual cell with excitation or signal trim
Preinstalled GORE breather vent
Equipped with independent potentiometers
Captive stainless steel screws (attached to the cover)
IP Rating: IP67

Number of cells	2-4 single cells
Input Cable Fittings	PG9: 4mm-8mm diameter cable
Output Cable Fittings	PG9: 4mm-8mm diameter cable
Trimming	Individual cell with excitation or signal trim
Enclosure Material	Aluminum Casting
IP Rating:	IP67

Load Cell Resistance	Signal Trim	Excitation Trim
350Ω	3.6% of output	2.3% of output
700Ω	6.3% of output	1.3% of output
1000Ω	7.0% of output	1.0% of output
