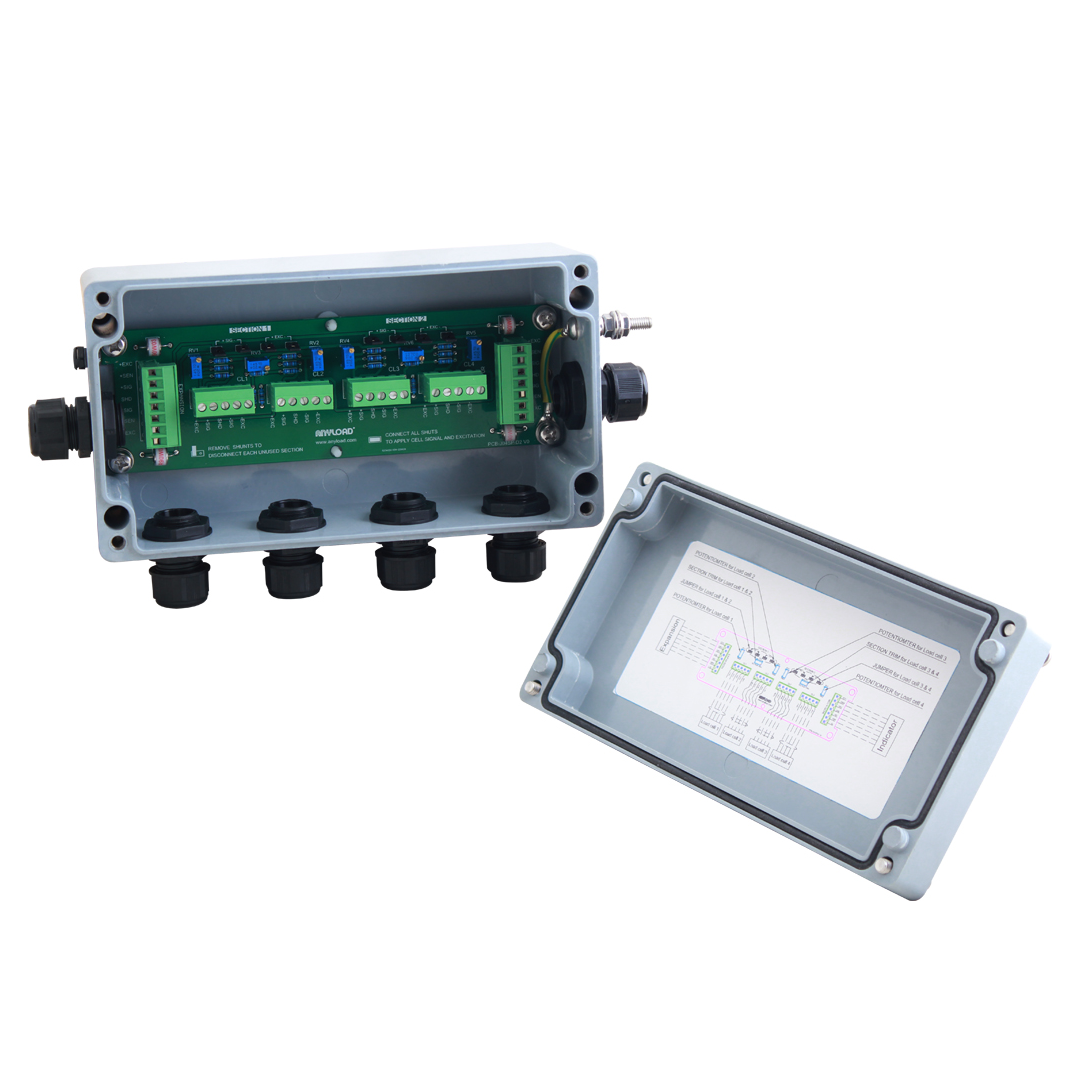

ANYLOAD product J04EP-E and J04SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment.  The J04SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to eight parallel load cell connections with an expansion port for wiring additional junction boxes.  The J04SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.

• Fiberglass reinforced polyester housing
• Quick removable load cell connectors
• Section and individual load cell trim pots
• Lightning/Over voltage protection
• Preinstalled GORE breather vent
• Conformal coated circuit board
• Number of load cells: 2-4 single cells
• Expansion port to/for additional J-Box
• IP rating: IP67
• Load cell shielding remains separate from earth ground terminal
• Load cell shielding is ideally intended to run from the load cell, through the junction box, into to the indicator where the shielding is ultimately grounded via the instrumentation power ground.
