| Number of cells | 2-4 single cells |
| Input Cable Fittings | PG9: 4mm-8mm diameter cable |
| Output Cable Fittings | PG13: 6mm-12mm diameter cable |
| Trimming | Individual cell with excitation or signal trim |
| Enclosure Material | Stainless steel SS304 |
| IP Rating: | IP65 |

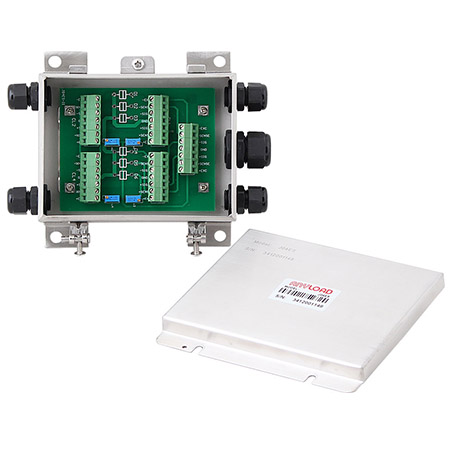

J04ES and J04SS Junction Box
Description:
ANYLOAD J04ES and J04SS junction and summing boxes accept inputs from multiple load cells and sum the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J04ES and J04SS are housed in a stainless steel SS304 enclosure and are designed to accommodate two to four parallel load cell connections. The J04ES and J04SS load cell junction boxes are easy to install with our patented never-lost and integrated screw design.
Features:
- Enclosure Material: Stainless steel SS304
- Number of cells: 2-4 single cells
- Trimming Options: Individual cell with excitation or signal trim
- Equipped with independently adjustable resistors
- Patented never-lost and integrated screw design
- IP Rating: IP65
| Load Cell Resistance | Signal Trim | Excitation Trim |
| 350Ω | 3.6% of output | 2.3% of output |
| 700Ω | 6.3% of output | 1.3% of output |
| 1000Ω | 7.0% of output | 1.0% of output |
