J04ES-E and J04SS-E Junction Box

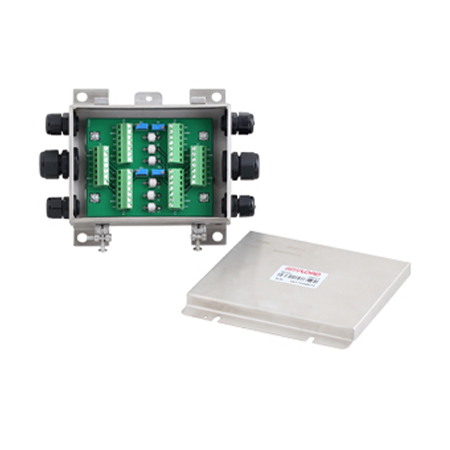

ANYLOAD J04ES-E and J04SS-E junction and summing boxes accept inputs from multiple load cells and sum the generated signals into a single output to ensure an accurate multi-cell balance adjustment. They are housed in a stainless steel SS304 enclosure and are designed to accommodate two to four parallel load cell connections with an expansion port for wiring additional junction box. The J04ES-E and J04SS-E load cell junction boxes are easy to install with captive stainless steel screws.

Expansion port (for wiring additional junction boxes to allow more load cells to be connected)
Lightning protection
Enclosure Material: Stainless steel SS304
Number of cells: 2-4 single cells
Trimming Options: Individual cell with excitation or signal trim
Equipped with independent potentiometers
Captive stainless steel screws
IP Rating: IP65

Product Enquiry

SKU: N/A Categories: Amplifiers and Junction Boxes, Junction Boxes

Specifications
Trimming Range
Data sheet

Number of cells	2-4 single cells
Input Cable Fittings	PG9: 4mm-8mm diameter cable
Output Cable Fittings	PG13: 6mm-12mm diameter cable
Trimming	Individual cell with excitation or signal trim
Enclosure Material	Stainless steel SS304
IP Rating:	IP65

Load Cell Resistance	Signal Trim	Excitation Trim
350Ω	3.6% of output	2.3% of output
700Ω	6.3% of output	1.3% of output
1000Ω	7.0% of output	1.0% of output
