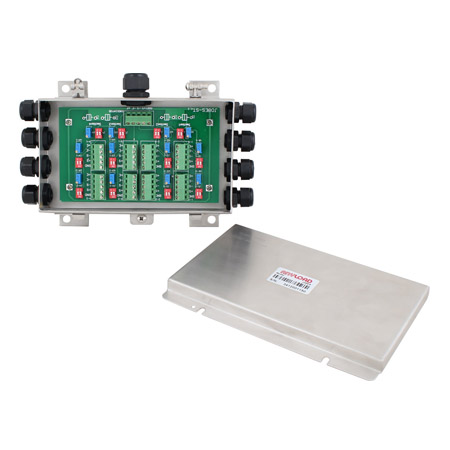

J08ES and J08SS Junction Box

ANYLOAD J08ES and J08SS junction and summing boxes accept inputs from multiple load cells and sum up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J08ES and J08SS are housed in a stainless steel SS304 enclosure and are designed to accommodate two to eight parallel load cell connections. The J08ES and J0SS load cell junction boxes are easy to install with our patented never-lost and integrated screw design. These models have an optional Lightning Protection.

Enclosure Material: Stainless steel SS304
Number of cells: 2-8 single cells
Trimming Options: Section or individual cell trim with excitation or signal trim
Protection Option: Lightning Protection
Equipped with independent potentiometers
Patented never lost and integrated screw design
IP Rating: IP65

Part Number	Clear

Product Enquiry

SKU: N/A Categories: Amplifiers and Junction Boxes, Junction Boxes Tags: junction box, lightning protection, load cell junction box, load cell junction boxes, load cell summation box, load cell summation boxes, load cell summing box, load cell summing boxes

Specifications
Trimming Range
Data sheet
Manuals

Number of cells	2-8 single cells
Input Cable Fittings	PG9: 4mm-8mm diameter cable
Output Cable Fittings	PG13: 6mm-12mm diameter cable
Trimming Options	Section or individual cell trim with excitation or signal trim
Enclosure Material	Stainless steel SS304
IP Rating	IP65

Load Cell Resistance	Signal Trim	Excitation Trim
350Ω	3.6% of output	2.3% of output
700Ω	6.3% of output	1.3% of output
1000Ω	7.0% of output	1.0% of output
