| Part No. | Safe Working Load | Shipping Weight (kg) Approx. |
| RE-1/4 | 500lb | 0.1 |
| RE-1/2 | 2Klb | 0.1 |
| RE-3/4 | 5Klb | 0.3 |
| RE-1-1/4 | 15Klb | 1.7 |
| RE-M6 | 0.1t | 0.1 |
| RE-M12 | 1.5t | 0.1 |
| RE-M16 | 1.7t | 0.2 |
| RE-M18 | 2t | 0.3 |
| RE-M24 | 3t | 0.6 |
| RE-M30 | 4.5t | 1.0 |

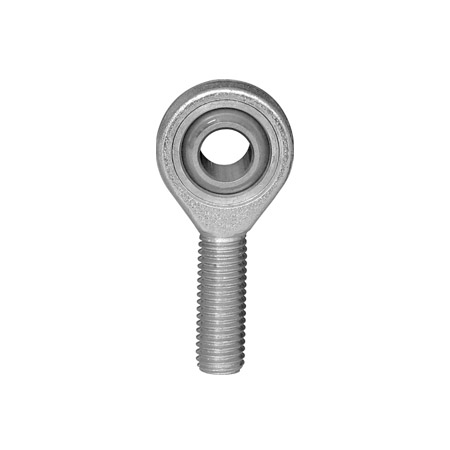

RE Load Cell Rod End
ANYLOAD rod ends are used in the assembly of tension weighing applications.
The RE rod ends are manufactured from alloy steel and are available in imperial and metric threads.
- Alloy steel construction
- Imperial thread sizes: 1/4", 1/2", 3/4", 11/4"
- Metric thread sizes: M6, M12, M16, M18, M20, M24, M30
Download data sheet
